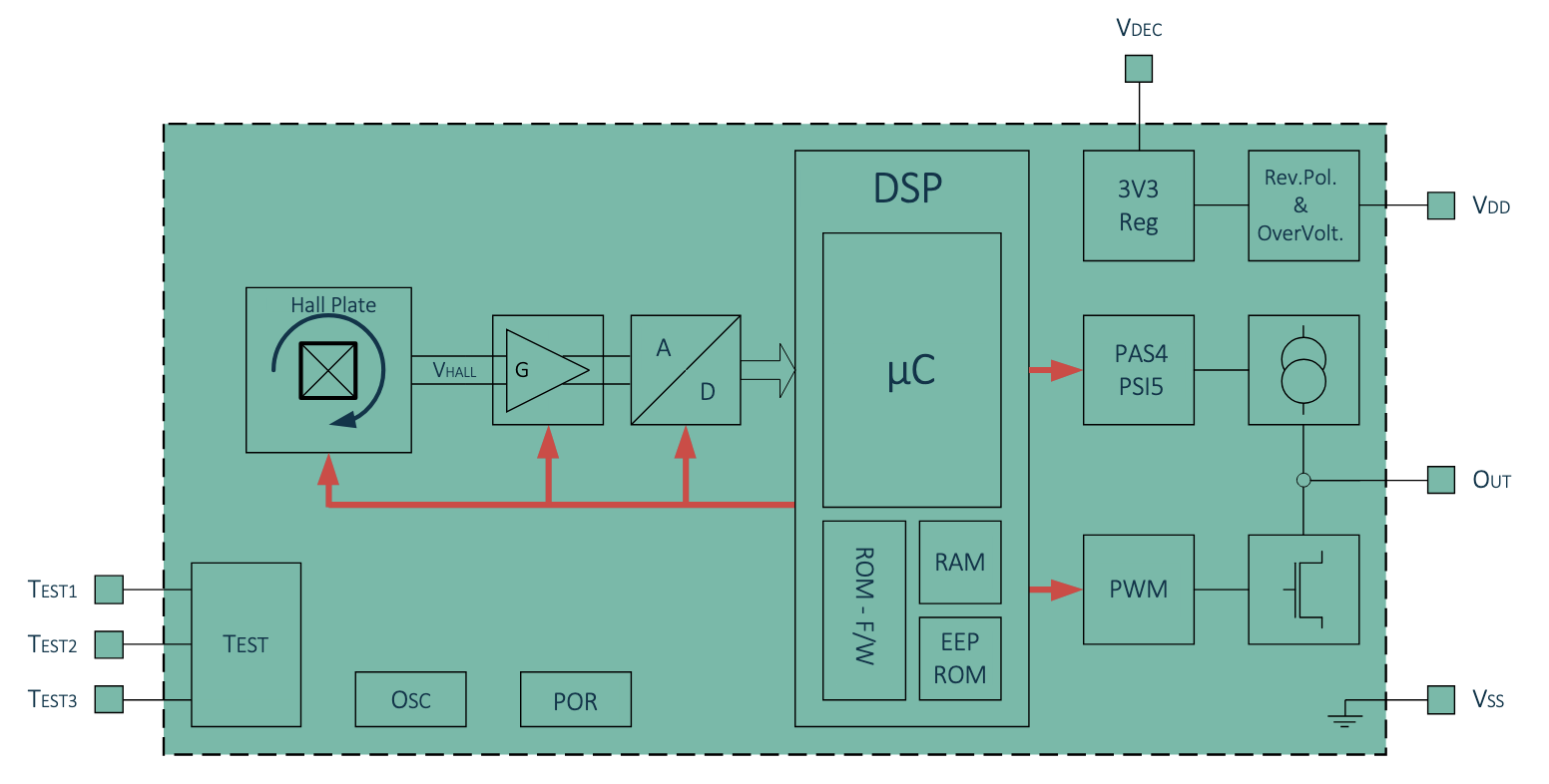

MLX90292 / Programmable linear Hall-effect sensor IC

The MLX90292 is a SMD redundant programmable linear Hall sensor IC with digital reporting protocol for position sensor applications with high safety requirements (ISO 26262 - ASIL) and/or small data latency. The MLX90292 is available in TSSOP-16 package featuring two independent and isolated dies for redundancy purpose. The measured magnetic flux density is conditioned through a fast DSP and reported through 2-wire PAS-4, 2-wire PSI5 (asynchronous mode - point-to-point), 2-/3-wire PWM. Latency time is less than 500 us.

MLX90292 Features and benefits

  • Programmable Hall-effect sensor
  • 12-bit magnetic flux density
  • On-chip 8-bit temperature available with 2-wire PAS4 and PSI5
  • 2-/3-wire PWM (up to 2 kHz)
  • Extensive diagnostic
  • Embedded μ-controller
  • Piecewise transfer characteristic linearization
  • Dual die TSSOP-16 SMD package RoHS compliant for redundancy and safety
  • Measurement range from ±30 mT to ±170 mT
  • Programmable through the connector
  • Adjustable sensitivity
  • Dual customer area for supply chain split
  • Over 48-bit customer IDs available
  • Lead-free component, suitable for lead-free soldering profile 260°C

MLX90292 Application Examples

  • Rotary position sensor
  • Linear position sensor
  • Torque sensor
